Gammaflux | LEC | Hot Runner Temperature Control Systems

SENSE - CONTROL - ACTUATE

Triangulated Control Technology®

Gammaflux LEC and G24 are equipped with the proprietary control technology for the best temperature sensing, controlling, and actuation capabilities. You benefit from:

Enhanced part quality
Reduced scrap
Improved part weight consistency
Material savings
Higher profit margins

TOUCH

S E N S E

Gammaflux controllers measure the exact temperature 20 times per second.

TOUCH

C O N T R O L

The Gammaflux PID² control algorithm adjusts if the actual temperature deviates 0.03 ºF (0.014 ºC) from the setpoint and monitors the rate of change in the actual temperature. As a result, the output to the heater is regulated in advance of the typical proportional band to limit or eliminate overshoot and undershoot.

TOUCH

A C T U A T E

Using phase angle control (0.1% resolution, 1,000 steps), the Gammaflux controller ensures smooth and precise power delivery to each heater.

Gammaflux-LEC-700x700

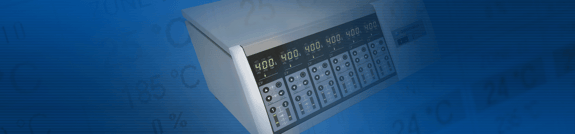

The Gammaflux LEC is equipped with the proprietary Triangulated Control Technology^®for the best temperature sensing, controlling, and actuation capabilities.

In addition, each 6 and 12 zone LEC enclosure comes prewired, ready to accept an optional network module.

With a network module, users can connect the LEC to the injection machine controller.
